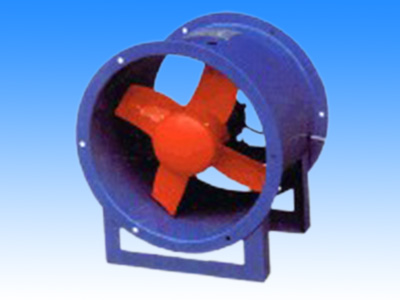

T40系列軸流通風機
T40系列軸流通風機
特點：
T40I型軸流通風機系在原T30型的基礎上進行改造、設計的，空氣效率從原來的69%提高到84%，是一種結構簡單，噪聲小的低壓軸流通風機。輸送的氣體必須是清潔、干燥，不得混有雜質和過多的水蒸汽及腐蝕性氣體，其溫度不得超過45度。
T40I系列軸流通風機性能參數表
|
機號
|
轉速
|
葉片角度
|
風量(m3/h)
|
風壓(Pa)
|
軸功率
|
電機功率
|
噪聲dB(A)
|
|
2.5
|
2900
|
15
|
1130
|
125
|
0.0578
|
0.09
|
67
|
|
20
|
1451
|
138
|
0.0783
|
0.09
|
69
|
||
|
25
|
1861
|
140
|
0.0992
|
0.12
|
70
|
||
|
30
|
2009
|
149
|
0.1145
|
0.12
|
71
|
||
|
35
|
2272
|
184
|
0.1657
|
0.18
|
73
|
||
|
1450
|
15
|
565
|
31
|
0.0072
|
0.025
|
52
|
|
|
20
|
724
|
34
|
0.0098
|
54
|
|||
|
25
|
932
|
35
|
0.0124
|
55
|
|||
|
30
|
1012
|
37
|
0.0143
|
56
|
|||
|
35
|
1141
|
46
|
0.0207
|
58
|
|||
|
3
|
2900
|
15
|
1951
|
180
|
0.144
|
0.18
|
72
|
|
20
|
2498
|
199
|
0.195
|
0.25
|
74
|
||
|
25
|
3218
|
202
|
0.247
|
0.25
|
74
|
||
|
30
|
3418
|
215
|
0.285
|
0.37
|
76
|
||
|
35
|
3931
|
266
|
0.413
|
0.55
|
77
|
||
|
1450
|
15
|
976
|
45
|
0.018
|
0.09
|
57
|
|
|
20
|
1249
|
50
|
0.0244
|
59
|
|||
|
25
|
1609
|
51
|
0.0308
|
61
|
|||
|
30
|
1739
|
54
|
0.0356
|
61
|
|||
|
35
|
1958
|
67
|
0.0516
|
64
|
|||
|
3.5
|
2900
|
15
|
3100
|
245
|
0.311
|
0.37
|
76
|
|
20
|
3971
|
272
|
0.422
|
0.55
|
78
|
||
|
25
|
5119
|
274
|
0.533
|
0.55
|
79
|
||
|
30
|
5519
|
292
|
0.615
|
0.75
|
80
|
||
|
35
|
6279
|
363
|
0.892
|
1.1
|
81
|
||
|
1450
|
15
|
1552
|
62
|
0.0389
|
0.06
|
61
|
|
|
20
|
1980
|
68
|
0.0528
|
0.06
|
61
|
||
|
25
|
2560
|
69
|
0.0666
|
0.09
|
64
|
||
|
30
|
2761
|
74
|
0.0769
|
0.09
|
65
|
||
|
35
|
3121
|
90
|
0.1113
|
0.12
|
67
|
||
|
4
|
2900
|
15
|
4630
|
321
|
0.605
|
1.1
|
80
|
|
20
|
5918
|
355
|
0.822
|
1.1
|
82
|
||
|
25
|
7639
|
359
|
1.039
|
1.1
|
83
|
||
|
30
|
8240
|
382
|
1.200
|
1.5
|
84
|
||
|
35
|
9310
|
473
|
1.732
|
2.2
|
85
|
||
|
1450
|
15
|
2318
|
80
|
0.0756
|
0.25
|
65
|
|
|
20
|
2959
|
88
|
0.1027
|
67
|
|||
|
25
|
3820
|
90
|
0.1299
|
68
|
|||
|
30
|
4118
|
95
|
0.1500
|
69
|
|||
|
35
|
4658
|
119
|
0.2168
|
72
|
|||
|
5
|
1450
|
15
|
4522
|
125
|
0.2231
|
0.75
|
71
|
|
20
|
5789
|
138
|
0.314
|
73
|
|||
|
25
|
7448
|
140
|
0.396
|
74
|
|||
|
30
|
8050
|
149
|
0.457
|
75
|
|||
|
35
|
9090
|
184
|
0.662
|
77
|
|||
|
960
|
15
|
2992
|
54
|
0.0669
|
0.25
|
62
|
|
|
20
|
3830
|
61
|
0.0909
|
64
|
|||
|
25
|
4939
|
62
|
0.1149
|
65
|
|||
|
30
|
5332
|
66
|
0.1327
|
66
|
|||
|
35
|
6019
|
81
|
0.1920
|
68
|
|||
|
6
|
1450
|
15
|
7808
|
180
|
0.575
|
1.1
|
76
|
|
20
|
9990
|
200
|
0.780
|
1.1
|
78
|
||
|
25
|
12899
|
202
|
0.983
|
1.1
|
80
|
||
|
30
|
13900
|
215
|
1.138
|
1.5
|
80
|
||
|
35
|
15700
|
267
|
1.650
|
2.2
|
81
|
||
|
960
|
15
|
5159
|
79
|
0.167
|
0.75
|
67
|
|
|
20
|
6610
|
87
|
0.227
|
69
|
|||
|
25
|
8510
|
88
|
0.286
|
71
|
|||
|
30
|
9202
|
94
|
0.331
|
72
|
|||
|
35
|
10400
|
117
|
0.476
|
74
|
|||
|
7
|
1450
|
15
|
12398
|
245
|
1.240
|
1.5
|
78
|
|
20
|
15901
|
272
|
1.690
|
1.5
|
79
|
||
|
25
|
20498
|
274
|
2.130
|
2.2
|
80
|
||
|
30
|
22100
|
294
|
2.470
|
3
|
81
|
||
|
35
|
25178
|
363
|
3.570
|
4
|
83
|
||
|
960
|
15
|
8201
|
108
|
0.360
|
0.75
|
71
|
|
|
20
|
10501
|
119
|
0.490
|
0.75
|
73
|
||
|
25
|
13500
|
121
|
0.619
|
0.75
|
74
|
||
|
30
|
14602
|
128
|
0.715
|
0.75
|
75
|
||
|
35
|
16499
|
159
|
1.034
|
1.1
|
76
|
||
|
8
|
1450
|
15
|
18500
|
321
|
2.430
|
3
|
79
|
|
20
|
23699
|
355
|
3.290
|
4
|
80
|
||
|
25
|
30499
|
359
|
4.160
|
5.5
|
81
|
||
|
30
|
33001
|
381
|
4.810
|
5.5
|
83
|
||
|
35
|
38099
|
473
|
6.960
|
7.5
|
84
|
||
|
960
|
15
|
12301
|
140
|
0.703
|
1.1
|
75
|
|
|
20
|
15700
|
156
|
0.954
|
1.1
|
77
|
||
|
25
|
20200
|
158
|
1.210
|
1.5
|
78
|
||
|
30
|
21802
|
168
|
1.400
|
1.5
|
78
|
||
|
35
|
24052
|
208
|
2.020
|
2.2
|
80
|
||
|
9
|
960
|
15
|
17399
|
177
|
1.270
|
1.5
|
77
|
|
20
|
22298
|
197
|
1.720
|
2.2
|
78
|
||
|
25
|
28699
|
199
|
2.180
|
2.2
|
79
|
||
|
30
|
31100
|
212
|
2.510
|
3
|
80
|
||
|
35
|
35100
|
263
|
3.640
|
4
|
81
|
||
|
10
|
960
|
15
|
24001
|
220
|
2.150
|
2.2
|
79
|
|
20
|
30701
|
243
|
2.910
|
3
|
80
|
||
|
25
|
39499
|
246
|
3.680
|
4
|
81
|
||
|
30
|
42700
|
262
|
4.260
|
5.5
|
82
|
||
|
35
|
48200
|
323
|
6.150
|
7.5
|
83
|
